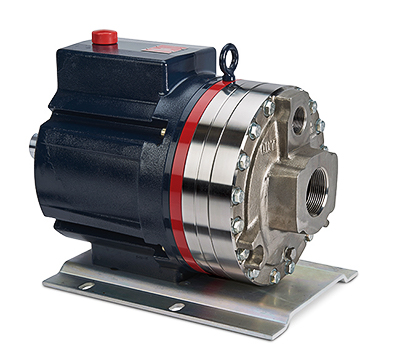

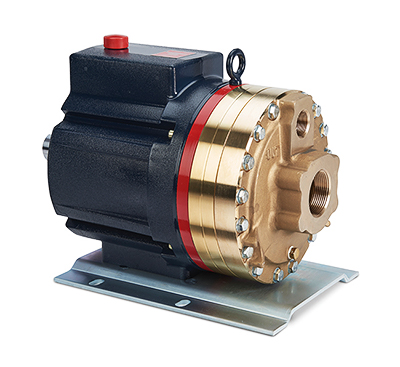

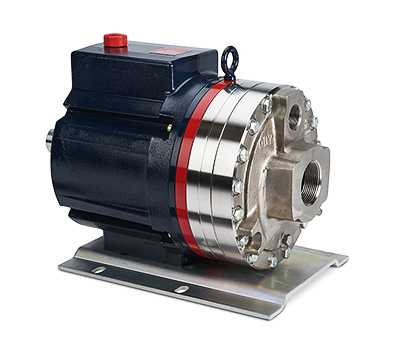

Diaphragm Pump Features
Versatile, Reliable Pumps for a Wide Range of Applications
- Pumps the full spectrum of low-to-high viscosity fluids.
- Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
- Simple, compact design reduces initial investment and lowers maintenance costs.
- Operational efficiencies reduce energy costs.
- Able to run dry without damage (or additional maintenance) to the pump in case of accident or operator error.
- Tolerates non-ideal operating conditions.
- Minimizes maintenance and downtime because there are no mechanical or dynamic seals, packing, or cups to leak, wear, or replace.
| Datasheets | |
|---|---|
| D35 Specifications |  |
| (Performance, Dimensions, Options, Ordering Information) | |
| Application Worksheet | |
| Installation Guidelines |
| Datasheets | |
|---|---|
| G35 Specifications | |
| (Performance, Dimensions, Options, Ordering Information) | |
| Application Worksheet | |
| Installation Guidelines |
| Model | Flow Capacities | rpm | gpm | l/min |
|---|---|---|---|---|
| D35-X | @ 1200 psi (83 bar) | 1050 | 36.5 | 138 |
| D35-E | @ 1200 psi (83 bar) | 1150 | 34.0 | 129 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| D35-X | @ 1200 psi (83 bar) | 0.0347 | 0.1314 |
| D35-E | @ 1200 psi (83 bar) | 0.0296 | 0.1120 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| D35-X | @ 1500 psi (103 bar) | 0.0330 | 0.1250 |
| Maximum Discharge Pressure | |
| Metallic Heads: | 1200 psi (83 bar) @ 1150 rpm max. |
| 1500 psi (103 bar) @ 700 rpm max. - Consult factory if operating above 1200 psi (83 bar). | |
| Maximum Inlet Pressure | 250 psi (17 bar) with 1500 psi (103 bar) |
| maximum discharge pressure | |
| 500 psi (34 bar) with 1200 psi (83 bar) | |
| maximum discharge pressure | |
| Maximum Operating Temperature | |
| Metallic Heads: | 250 ̊F (121 ̊C) - Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). |
| Maximum Solids Size | 800 microns |
| Inlet Port | 2-1/2 inch NPT |
| 150lb or 600lb ANSI RF flange | |
| 3 inch SAE flange | |
| Discharge Port | 1-1/4 inch NPT |
| 600lb or 1500lb ANSI RF flange | |
| 1-1/4 inch SAE flange | |
| Shaft Diameter | 2 inch (50.8 mm) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered roller bearings |
| Oil Capacity | 7.75 US quarts (7.3 liters) |
| Weight | |
| Metallic Heads: | 257 lbs. (116.6 kg) |
| Model | Flow Capacities | rpm | gpm | l/min |
|---|---|---|---|---|
| G35-X | @ 83 bar (1200 psi) 6-pole Motor @ 50 Hz | 960 | 33.50 | 127.00 |
| G35-E | @ 83 bar (1200 psi) 6-pole Motor @ 50 Hz | 960 | 29.00 | 110.00 |
| Model | Flow Capacities | rpm | gpm | l/min |
|---|---|---|---|---|
| G35-X | @ 83 bar (1200 psi) 8-pole Motor @ 50 Hz | 730 | 25.50 | 96.60 |
| G35-E | @ 83 bar (1200 psi) 8-pole Motor @ 50 Hz | 730 | 22.10 | 83.60 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| G35-X | @ 83 bar (1200 psi) | 0.0347 | 0.1314 |
| G35-E | @ 83 bar (1200 psi) | 0.0296 | 0.1120 |
| Model | Delivery | gal/rev | liters/rev |
|---|---|---|---|
| G35-X | @ 103 bar (1500 psi) | 0.0330 | 0.1250 |
| Maximum Discharge Pressure | |
| Metallic Heads: | 83 bar (1200 psi) @ 1150 rpm max. |
| 103 bar (1500 psi) @ 700 rpm max. - Consult factory if operating above 83 bar (1200 psi). | |
| Maximum Inlet Pressure | 17 bar (250 psi) with 103 bar (1500 psi) |
| maximum discharge pressure | |
| 34 bar (500 psi) with 83 bar (1200 psi) | |
| maximum discharge pressure | |
| Maximum Operating Temperature | |
| Metallic Heads: | 121 ̊C (250 ̊F) - Consult factory for correct component selection for temperatures from 71 ̊C (160 ̊F) to 121 ̊C (250 ̊F). |
| Maximum Solids Size | 800 microns |
| Inlet Port | 2-1/2 inch BSPT |
| 2-1/2 inch NPT | |
| 150lb or 600lb ANSI RF flange | |
| 3 inch SAE flange | |
| Discharge Port | 1-1/4 inch BSPT |
| 1-1/4 inch NPT | |
| 600lb or 1500lb ANSI RF flange | |
| 1-1/4 inch SAE flange | |
| Shaft Diameter | 50.8 mm (2 inch) |
| Shaft Rotation | Reverse (bi-directional) |
| Bearings | Tapered roller bearings |
| Oil Capacity | 7.3 liters (7.75 US quarts) |
| Weight | |
| Metallic Heads: | 116.6 kg (257 lbs.) |
| Files | |
|---|---|
| D-35 w/Metallic Pump Head | (Solidworks Part) |
| D-35 w/Metallic Pump Head | (IGES File) |
| D-35 w/Metallic Pump Head | (STEP File) |
| Files | |
|---|---|
| G-35 w/Metallic Pump Head | (Solidworks Part) |
| G-35 w/Metallic Pump Head | (STEP File) |
