Smart and intuitive operation with three types of control functions:
- Simple key functions and user interface for ease of operation.
- Range can be set between 1 and 300 strokes per minute in 1-stroke units.
- Discharge volume can be set up to the maximum flow capacity in 0.1 ml/m units (with SP models).
- For fine-tuning an application, the stroke length can be changed from 100% to as low as 50%.
- Safety mechanisms to prevent air lock.
- Back-up diaphragm.

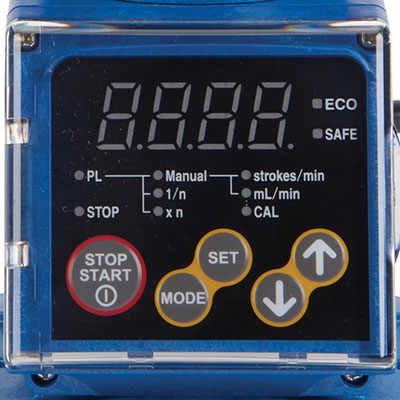

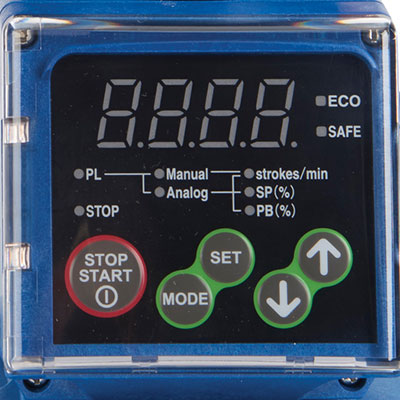

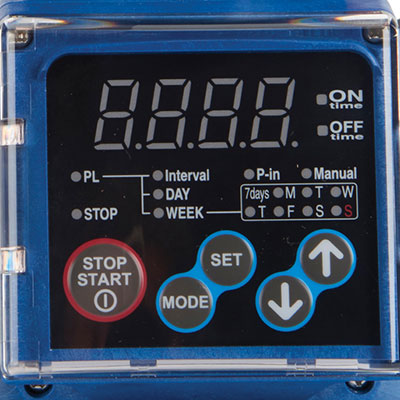

- LED touch-pad operation.
- Liquid end that can be positioned 90˚ left or right.
- O-ring to prevent chemical permeation from outside the pump.
- Welded casing and parts.
- Hexagonal head bolts with cross recess.
- Spare parts kits available to extend pump service life.
Unlike conventional pumps that are always turned on for a specific time period regardless of the discharge pressure, S Series “Eco-friendly” pumps with pulse-in control automatically cut the power-on time in accordance with the discharge pressure.
The “Eco-friendly” mode of SP/ST/SA models always monitors operation conditions and automatically shortens the power-on time during low-pressure operation in order to reduce power consumption and operating costs.
General Specifications | |
Stroke Speed | 1 to 300 strokes/minute (enables setting in 1-stroke units) |
Stroke Length | 0.5 to 1.0 mm (enables adjustment using the dial) |
Maximum Allowable Viscosity | 3,000 mPa (3,000 cPs) - HV models only |
Maximum Allowable Viscosity | 50 mPa (50 cPs) - all other models |
Temperature Ranges Ambient: | 32˚F to 104˚F (0˚C to 40˚C); |
Transferring Liquid: 32˚F to 104˚F (0˚C to 40˚C); | |
no freezing allowed | |
Ambient Humidity | 35% to 85% RH |
Environmental Protection | IEC standard; IP65 or equivalent (waterproof & dust-resistant) |
Insulation Class | B |
Power Supply | |
Rated Voltage | AC 100 to 240 V (±10%) |
Phase/Frequency | 1-phase/50 or 60 Hz |
Maximum Current | 2.0 A (030 or 03R PVC, PVDF & 316SS models) |
Maximum Current | 2.5 A (all other models) |
Maximum Power | Consumption 250 VA |
Average Power | Consumption 18 W |
Cable | Cab-tire cable (ø 5 to 10) |
