Electronic Precision Metering
Versatile, Reliable Pumps for a Wide Range of Applications
- Handles a wide range of fluids from clear water to thick slurries
- Electronic flow control increases accuracy and reliability
- Smaller footprint saves valuable space
- One pump covers a wide range of flows and pressures - reducing inventory requirements with fast, simple field conversion
- Duplexing option doubles capacity without doubling equipment cost
- Hydraulically-actuated, balanced diaphragms provide superior performance across entire pressure range
- Rugged construction with a variety of affordable choices for liquid end, diaphragm, and check valve materials
- Seal-less design means no seals, cups, or packing to leak or replace
- A replenishment valve in every piston assembly ensures optimum actuating oil on every stroke for continuous accuracy
Datasheets | |
---|---|

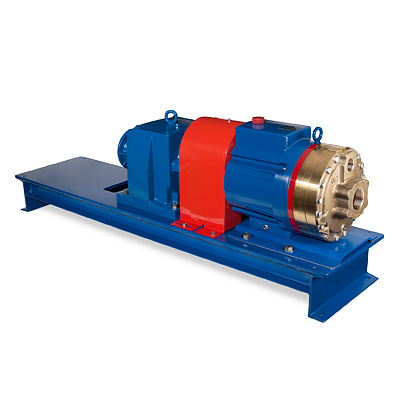

P700 Metering Pump Specifications | ![]() |
Diaphragms per Liquid End | 5 with Advanced Diaphragm |
Position Control (ADPC) | |
Flow Control | Electronic variable speed drive |
Maximum Discharge Pressure | |
Metallic Heads: | 1200 psi (83 bar) |
Maximum Inlet Pressure | 250 psi (17 bar) |
Maximum Operating Temperature | |
Metallic Heads: | 250 ̊F (121 ̊C)* |
Maximum Solids Size | 800 microns |
Inlet Port | 2-1/2 inch NPT/BSPT or |
3 inch SAE J518 flange | |
Discharge Port | 1-1/4 inch NPT/BSPT or |
1-1/4 inch SAE J518 flange | |
Shaft Rotation | Bi-directional |
Oil Capacity | 7.75 US quarts (7.4 liters) |
Weight (less motor) | |
Metallic Heads: | 638 to 685 lbs (289 to 311 kg) |
Dimensions (less motor)** | |
Metallic Heads: | 11.53” W x 39.51” D x 15.11” H |
(292.9 mm W x 1003 mm D x 383.8 mm H) | |
* Consult factory for correct metallic head component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). | * Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). |
** For NEMA 143/145TC motor frames only | .** For 56C motor frame only. Consult factory for other motor frame sizes. |
