Electronic Precision Metering
Versatile, Reliable Pumps for a Wide Range of Applications
- Designed to handle a wide range of fluids from clear water to thick slurries
- Electronic flow control increases accuracy and reliability
- Multiple diaphragm design provides linear, virtually pulse-less flow
- Smaller footprint saves valuable space
- One pump covers a wide range of flows and pressures - reducing inventory requirements with fast, simple field conversion
- Duplexing option doubles capacity and equipment savings
- Hydraulically-actuated, balanced diaphragms provide superior performance across entire pressure range
- Rugged construction with a variety of affordable choices for liquid end, diaphragm and check valve materials
| Datasheets | |
|---|---|
| P400 Metering Pump Specifications |  |
| Diaphragms per Liquid End | 3 |
| Flow Control | Electronic variable speed drive |
| Maximum Discharge Pressure | |
| Metallic Heads: | 1000 psi (69 bar) |
| Non-metallic Heads: | PVDF- 350 psi (24 bar) |
| Polypropylene- 250 psi (17 bar) | |
| Maximum Inlet Pressure | 250 psi (17 bar) |
| Maximum Operating Temperature | |

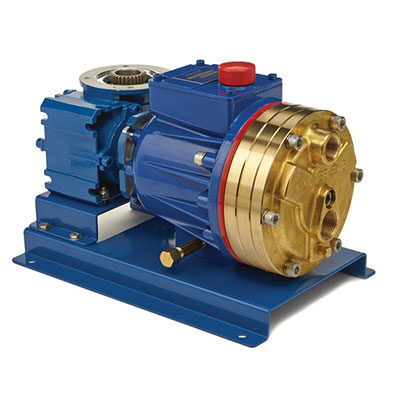

| Metallic Heads: | 250 ̊F (121 ̊C)* |

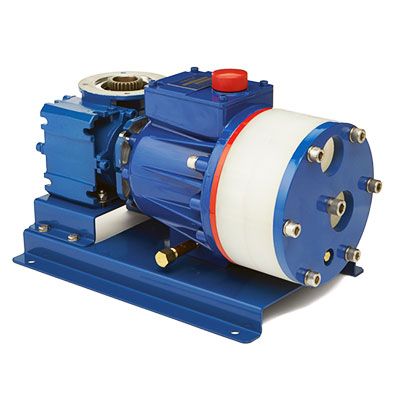

| Non-metallic Heads: | 140 ̊F (60 ̊C) |
| Maximum Solids Size | 500 microns |
| Inlet Port | 1 inch NPT or BSPT |
| Discharge Port | 3/4 inch NPT or BSPT |
| Shaft Rotation | Bi-directional |
| Oil Capacity | 1.35 US quarts (1.27 liters) |
| Weight (less motor)** | |
| Metallic Heads: | 65.5 lbs (29.7 kg) |
| Non-metallic Heads: | 52.5 lbs (23.8 kg) |
| Dimensions (less motor)** | |
| Metallic Heads: | 9.94” W x 16.12” D x 10.29” H |
| (252.4 mm W x 409.4 mm D x 261.3 mm H) | |
| Non-metallic Heads: | 9.94” W x 17.29” D x 10.29” H |
| (252.4 mm W x 439.2 mm D x 261.3 mm H) | |
| * Consult factory for correct metallic head component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C). | |
| ** For NEMA 56 motor frames only. Consult factory for other motor frame sizes. |
