Metering Pumps Selection

Hydra-Cell® Metering Pumps Selection

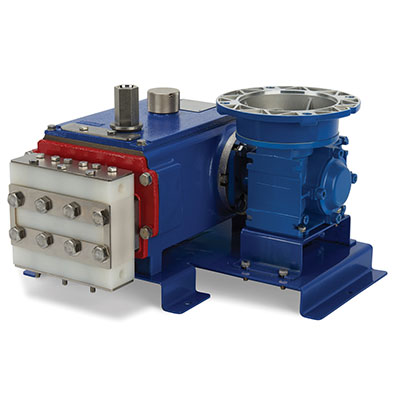

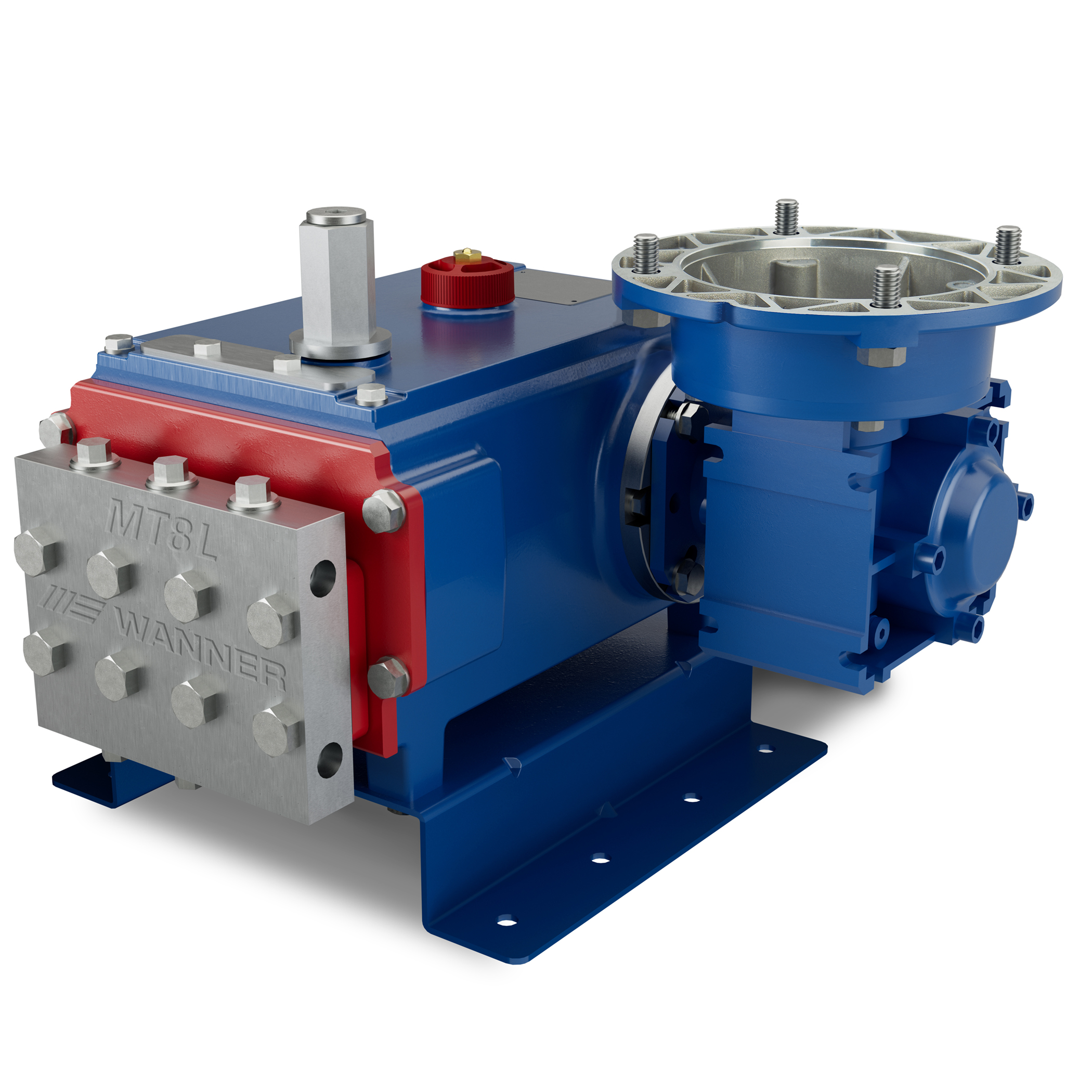

Linear "Pulse-less" Metering with the Hydra-Cell MT8 Pump

What is a Metering Pump?

Hydra-Cell® Flow Capacities and Pressure Ratings

Hydra-Cell Metering Solutions Performance

Flows shown in the graph above and listed in the chart below for each metering pump are based upon lab testing of multiple pumps. However, flows listed are approximate values and pumps must be calibrated once installed into any system. Flow variations will occur, but calibration will ensure proper pump performance.

Motor Speed rpm Maximum Capacity gph Maximum Discharge Pressure psi (bar) Maximum Operating Temperature F (C)3 Maximum Inlet Pressure psi (bar)
Model1 Non-metallic2 Metallic Non-metallic Metallic
MT8 1800 8.0 350 (24) 3500 (241) 140˚(60˚) 250˚(121˚) 500 (34)4
P100 1800 13.5 350 (24) 1500 (103) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P100 3600 27.0 350 (24) 1500 (103) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P200 1800 40.5 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P200 3600 81.0 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P300 1800 40.6 N/A 2500 (172) N/A 250 ̊ (121 ̊) 500 (34)
P300 3600 81.4 N/A 2500 (172) N/A 250 ̊ (121 ̊) 500 (34)
P400 1800 121.1 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P400 3600 242.8 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P500 1800 212.8 N/A 2500 (172) N/A 250 ̊ (121 ̊) 500 (34)
P500 3600 425.9 N/A 2500 (172) N/A 250 ̊ (121 ̊) 500 (34)
P600 1800 444.8 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P600 3600 890.3 350 (24) 1000 (69) 140 ̊ (60 ̊) 250 ̊ (121 ̊) 250 (17)
P700 1800 706 N/A 1200 (83) N/A 250 ̊ (121 ̊) 250 (17)
P700 3600 1394 N/A 1200 (83) N/A 250 ̊ (121 ̊) 250 (17)

1 Ratings are for X-cam design.
2 350 psi (24 bar) maximum with PVDF or PVC (MT8 only) liquid ends; 250 psi (17 bar) maximum with Polypropylene liquid end (P Series only).
3 Consult factory for correct component selection for temperatures from 160˚F (71˚C) to 250˚F (121˚C).
4 300 psi (20 bar) maximum with non-metallic MT8 models.
