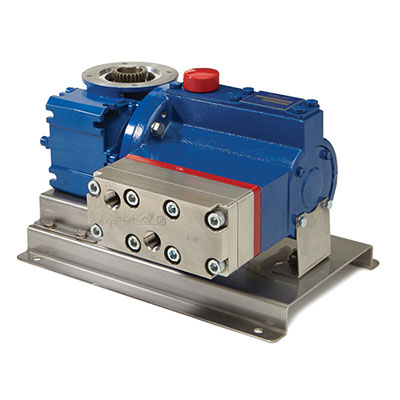

P300 Pump Series

Electronic Precision Metering

Versatile, Reliable Pumps for a Wide Range of Applications

  • Designed to handle a wide range of fluids from clear water to thick slurries
  • Electronic flow control increases accuracy and reliability
  • Multiple diaphragm design provides linear, virtually pulse-less flow
  • Smaller footprint saves valuable space
  • One pump covers a wide range of flows and pressures - reducing inventory re- quirements with fast, simple field conversion
  • Duplexing option doubles capacity and equipment savings
  • Hydraulically-actuated,balanceddiaphragms provide superior performance across entire pressure range
  • Rugged construction with a variety of afford- able choices for liquid end, diaphragm and check valve materials

P300 Series Resources

P300 - Specifications
Diaphragms per Liquid End 3
Flow Control Electronic variable speed drive
Maximum Discharge Pressure
Metallic Heads: 2500 psi (172 bar)
Maximum Inlet Pressure 500 psi (34 bar)
Maximum Operating Temperature
Metallic Heads:250 ̊F (121 ̊C)*
Inlet Port1/2 inch NPT or BSPT
Discharge Port 1/2 inch NPT or BSPT
Weight (less motor)**
Metallic Heads:54.5 lbs (24.7 kg)
Dimensions (less motor)**
Metallic Heads:15.79” W x 12.25” D x 9.46” H
(401.2 mm W x 311.0 mm D x 240.2 mm H)
* Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).* Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).
** For 56C motor frame only. Consult factory for other motor frame sizes.

P300 - Manuals
Manuals
Installation & Service Manual

CAD Drawings
Files
n/a

CAD Drawings
Files
n/a

Simple, compact design reduces initial investment and lowers maintenance costs.

Hydra-Cell Heavy Duty Pumps have proven their performance and reliability in the toughest industrial equipment and process applications.

When we say “Simply Built to Last”, we mean it!
