Hydra-Cell Metering Pumps

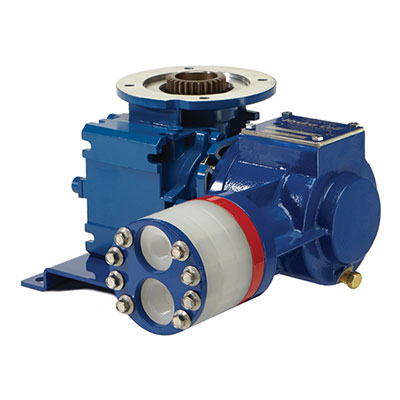

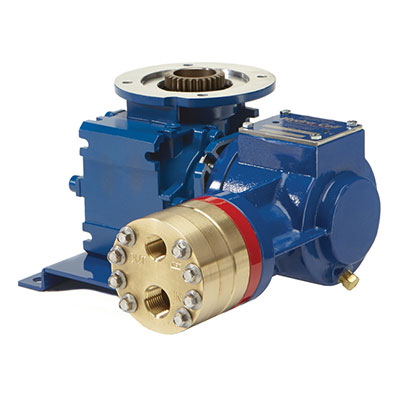

P100 Metering Pump
Diaphragms per Liquid End
1
Flow Control
Electronic variable
speed drive
Max Discharge Pressure
    Metallic Head:
1500 PSI (104 bar)

    Non-Metallic Head:
         Polypropylene:
250 PSI (17 bar)
         Kynar:
350 PSI (24 bar)
Maximum Suction Pressure
250 PSI (17 bar)
Max Temperature
    Metallic Head:
250°F (121°C)*

    Non-Metallic Head:
140°F (60°C)
Suction Port
1/2 inch NPT, BSPT
Discharge Port
3/8 inch NPT, BSPT
Weight (less motor)
    Metallic Head:
18.5 lbs (8.4 kg)

    Non-Metallic Head:
16.4 lbs (7.4 kg)
Dimensions (less motor)
    Metallic Head:
9.07” W x 11.57” D x 5.9” H
(230 mm W x 294 mm D x 150 mm H)

    Non-Metallic Head:
9.07” W x 11.82” D x 5.9” H
(230 mm W x 300 mm D x 150 mm H)
* Consult factory for correct component selection for temperatures above 160°F (71°C)
Documents
Size
Datasheets
P100 Metering Pump Specifications
204k
Metric Specifications for P100 200k
Manuals
Installation & Service Manual
Entire Manual
1.3MB
Accessories
Accessories Selection Guide
208k
Calibration Cylinders
72k
Pulsation Dampeners
180k
Back Pressure and Pressure Relief Valves
88k
CAD Files
n/a
