Q155 Medium Pressure

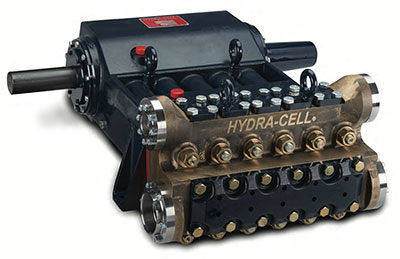

Q155 Series Quintuplex Pumps

Versatile, Reliable Pumps for a Wide Range of Applications

  • Seal-less design eliminates leaks, hazards and the expense associated with seals and packing
  • Low NPSH requirements allow for operation with a vacuum condition on the suction - positive suction pressure is not necessary
  • Can operate with a closed or blocked suction line and run dry indefinitely without damage, eliminating downtime and repair costs
  • Unique diaphragm design handles more abrasives with less wear than gear, screw or plunger pumps
  • Hydraulically balanced diaphragms to handle high pressures with low stress
  • Lower energy costs than centrifugal pumps
  • Rugged construction for long life with minimal maintenance
  • Compact design and double-ended shaft provide a variety of installation options

Q155 Medium Pressure Resources

Q155 Medium Pressure - Datasheets
Datasheets
Q155 Medium Pressure Specifications
(Performance, Dimensions, Options, Ordering Information)
Application Worksheet

Q155 Medium Pressure Series
Q155 Medium Pressure - Flow Capacities
ModelPressure psi (bar)rpmgpml/min
Q155K3000 (207)45078.0295.3
Q155M3500 (241)45066.8252.9

Q155 Medium Pressure - Delivery
ModelPressure psi (bar)gal/revliters/rev
Q155K500 (34)0.1850.700
1500 (103)0.1810.685
3000 (207)0.1730.654
Q155M500 (34)0.2010.760
1750 (121)0.1970.747
3500 (241)0.1930.731

Q155 Medium Pressure - RPM
rpm
Maximum:450
Minimum:200
(Consult factory for speeds less than 200 rpm)

Q155 Medium Pressure - Other Specifications
Maximum Discharge Pressure
Metallic Heads:Q155K3000 psi (207 bar)
Q155M3500 psi (241 bar)
Maximum Inlet Pressure500 psi (34 bar)
Operating Temperature
Maximum:180 ̊F (82.2 ̊C)
Minimum:40 ̊F (4.4 ̊C)
Consult factory for temperatures outside this range
Maximum Solids Size800 microns
Input ShaftLeft or Right Side
Inlet PortWeld-On: 4” / SCH. 40
4” NPT
Discharge PortWeld-On: 2” / SCH. 160
2” NPT
Shaft Diameter3 inch (76.2 mm)
Shaft RotationUni-directional (see rotation arrows)
Oil Capacity32 US quarts (30.3 liters)
10W30 standard-duty oil
Weight
Metallic Heads:1700 lbs. (3740 kg)
Fluid End Materials
Manifold:Nickel Aluminum Bronze (NAB)
316 Stainless Steel
Diaphragm/Elastomers:FKM, Buna-N
Diaphragm Follower Screw:316 Stainless Steel
Valve Spring Retainer:17-7 PH Stainless Steel
Check Valve Spring:Elgiloy
Valve Disc/Seat:Tungsten Carbide
17-4 Stainless Steel
Hastelloy C
Outlet Valve Retainer:316 Stainless Steel
Plug-Outlet Valve Port:316 Stainless Steel
Inlet Valve Retainer:316 Stainless Steel

Q155 Medium Pressure Manuals
Files
Q155 Installation & Service Manual

Q155 Accessories
Files
Q155 Pressure Accessories

Q155 Medium 3D CAD Drawings
Files
Q155 Medium Pressure (STEP)

Low NPSH requirements allow for operation with a vacuum condition on the suction - positive suction pressure is not necessary.

Hydra-Cell Heavy Duty Pumps have proven their performance and reliability in the toughest industrial equipment and process applications.

When we say “Simply Built to Last”, we mean it!
