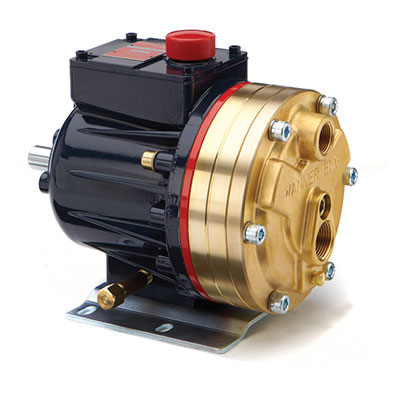

D10 Series (US) / G10 Series (Metric)

Maximum Flow Rate: 8.8 gpm (33.4 l/min)
Maximum Pressure: 1500 psi (103 bar) for Metallic Pump Heads
350 psi (24 bar) for Non-metallic Pump Heads

Diaphragm Pump Features

Versatile, Reliable Pumps for a Wide Range of Applications

  • Pumps the full spectrum of low-to-high viscosity fluids.
  • Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
  • Simple, compact design reduces initial investment and lowers maintenance costs.
  • Operational efficiencies reduce energy costs.
  • Able to run dry without damage (or additional maintenance) to the pump in case
  • of accident or operator error.
  • Tolerates non-ideal operating conditions.
  • Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace.

D10 / G10 Series Resources

D10 - Datasheets
Datasheets
D10 Specifications
(Performance, Dimensions, Options, Ordering Information)
Application Worksheet
Installation Guidelines

G10 - Datasheets
Datasheets
G10 Specifications
(Performance, Dimensions, Options, Ordering Information)
Application Worksheet
Installation Guidelines

D10 Series (Metric)
D10 - Flow Capacities @1000 Psi (69 Bar)
Model rpm gpm l/min
D10-X 1450 8.10 30.6
D10-E 1750 8.83 33.4
D10-S 1750 6.00 22.7
D10-I 1750 3.96 15.0

D10 - Delivery @1500 Psi (103 Bar)
Model gal/rev liters/rev
D10-X 0.0054 0.0205
D10-E 0.0049 0.0186

D10 - Delivery @1000 Psi (69 Bar)
Model gal/rev liters/rev
D10-X 0.0056 0.0211
D10-E 0.0051 0.0191
D10-S 0.0034 0.0130
D10-I 0.0023 0.0086

D10 - Other Specifications
Maximum Discharge Pressure
Metallic Heads: 1000 psi (69 bar) @1450 rpm (D10-X)
1000 psi (69 bar) @1750 rpm (D10-E, S, I)
1500 psi (103 bar) @790 rpm (D10-X)

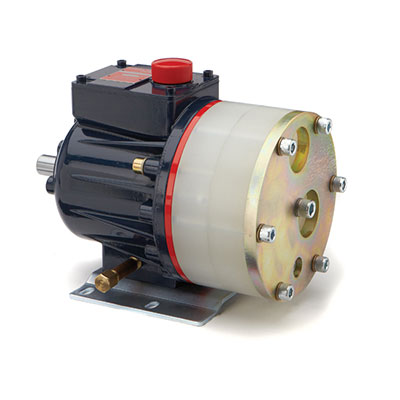

Non-metallic Heads: 250 psi (17 bar) Polypropylene
350 psi (24 bar) PVDF
Maximum Inlet Pressure 250 psi (17 bar)
Maximum Operating Temperature
Metallic Heads: 250 ̊F (121 ̊C) - Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).
Non-metallic Heads: 140 ̊F (60 ̊C)
Maximum Solids Size 500 microns
Inlet Port 1 inch NPT
Discharge Port 3/4 inch NPT
Shaft Diameter 7/8 inch (22.2 mm)
Shaft Rotation Reverse (bi-directional)
Bearings Tapered roller bearings
Oil Capacity 1.1 US quarts (1.05 liters)
Weight
Metallic Heads: 48 lbs. (21.8 kg)
Non-metallic Heads: 35 lbs. (15.9 kg)

D10 Series (Metric)
G10 - Flow Capacities @ 69 Bar (1000 Psi) 4-Pole Motor @ 50 Hz
Model rpm gpm l/min
G10-X 1450 8.10 30.6
G10-E 1450 6.63 25.1
G10-S 1450 4.96 18.8
G10-I 1450 3.30 12.5

G10 - Flow Capacities @ 69 Bar (1000 Psi) 6-Pole Motor @ 50 Hz
Model rpm gpm l/min
G10-X 960 5.19 19.6
G10-E 960 4.39 16.6
G10-S 960 3.28 12.4
G10-I 960 2.19 8.3

G10 - Delivery @ 103 Bar (1500 Psi)
Model gal/rev liters/rev
G10-X 0.0054 0.0205
G10-E 0.0049 0.0186

G10 - Delivery @ 69 Bar (1000 Psi)
Model gal/rev liters/rev
G10-X 0.0056 0.0211
G10-E 0.0051 0.0191
G10-S 0.0034 0.0130
G10-I 0.0023 0.0086

G10 - Other Specifications
Maximum Discharge Pressure
Metallic Heads: 69 bar (1000 psi) @1450 rpm (G10-X)
69 bar (1000 psi) @1750 rpm (G10-E, S, I)
103 bar (1500 psi) @790 rpm (G10-X)
Non-metallic Heads: 17 bar (250 psi) Polypropylene
24 bar (350 psi) PVDF
Maximum Inlet Pressure 17 bar (250 psi)
Maximum Operating Temperature
Metallic Heads: 121 ̊C (250 ̊F) - Consult factory for correct component selection for temperatures from 71 ̊C (160 ̊F) to 121 ̊C (250 ̊F).
Non-metallic Heads: 60 ̊C (140 ̊F)
Maximum Solids Size 500 microns
Inlet Port 1 inch BSPT
1 inch NPT
150lb ANSI RF flange
Discharge Port 3/4 inch BSPT
3/4 inch NPT
600lb ANSI RF flange
Shaft Diameter 22.2 mm (7/8 inch)
Shaft Rotation Reverse (bi-directional)
Bearings Tapered roller bearings
Oil Capacity 1.05 liters (1.1 US quarts)
Weight
Metallic Heads: 21.8 kg (48 lbs.)
Non-metallic Heads: 15.9 kg (35 lbs.)

D10 / G10 Manuals
Files
D10 / G10 Installation & Service Manual
D-10 w/Metallic Pump Head Parts Manual
D-10 w/Non-Metallic Pump Head Parts Manual
G-10 w/Metallic Pump Head Parts Manual
G-10 w/Non-Metallic Pump Head Parts Manual

D10 / G10 Accessories
Files
Motors
Hydra Oil
Couplers
Tool Kits
Hose Connectors
D10 w/Metallic Pump Head Replacement Parts Kits
D10 w/Non-Metallic Pump Head Replacement Parts Kits
G10 w/Metallic Pump Head Replacement Parts Kits
G10 w/Non-Metallic Pump Head Replacement Parts Kits
Oil Level Monitor
Oil Cooler and Filter
Pump Motor Baseplates
D/G-10 Pump/Motor Adapter
Oil Reservoir
C80 Airbleed Valve

D10 / G10 - 3D Cad Drawings
Files
D-10 w/Metallic Pump Head (Solidworks Part)
D10/G10 w/Non- Metallic Pump Head (Solidworks Part)

D10 / G10 - 2D Cad Drawings
Files
D-10 w/Metallic Pump Head
D-10 w/Metallic Pump Head
D-10 w/Non-Metallic Pump Head
D-10 w/Non-Metallic Pump Head
G-10 w/Metallic Pump Head
G-10 w/Metallic Pump Head
G-10 w/Non-Metallic Pump Head
G-10 w/Non-Metallic Pump Head

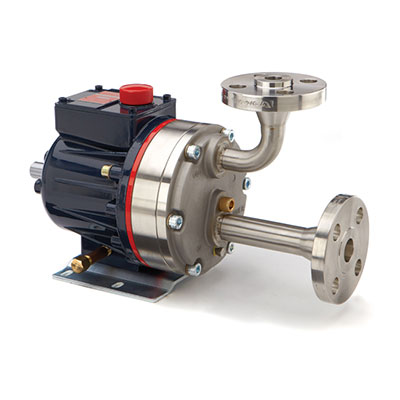

D-10 w/ANSI Flange

Valve Selection

Choose the valve for this Diaphragm Pump

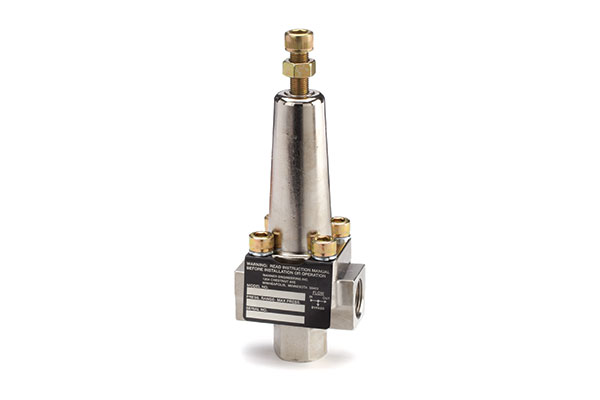

C62 Pressure Regulating Valve

A seal-less C62 Pressure Regulating Valve is recommended for Hydra-Cell D10 pumping systems, especially for high-pressure requirements when handling dirty fluids.

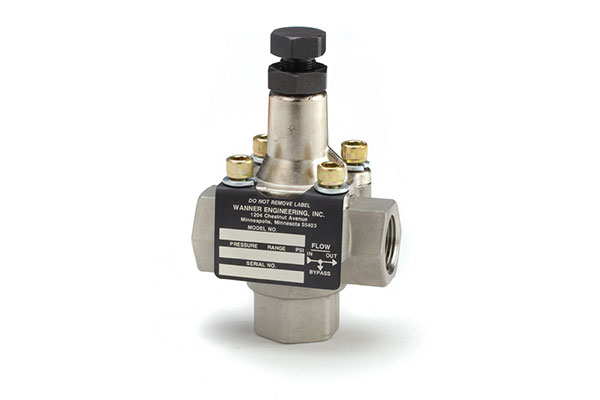

C22 Pressure Regulating Valve

A C22 Pressure Regulating Valve provides a capable, lower-cost alternative to C62 valves for Hydra-Cell D10 pumping systems.

Simple, compact design reduces initial investment and lowers maintenance costs.

Hydra-Cell Heavy Duty Pumps have proven their performance and reliability in the toughest industrial equipment and process applications.

When we say “Simply Built to Last”, we mean it!
