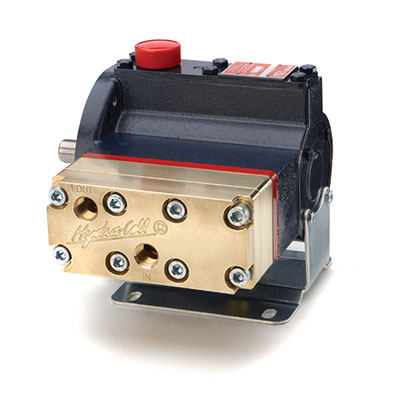

D04 Series (US) / G04 Series (Metric)

Diaphragm Pump Features

Versatile, Reliable Pumps for a Wide Range of Applications

  • Pumps the full spectrum of low-to-high viscosity fluids.
  • Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
  • Simple, compact design reduces initial investment and lowers maintenance costs.
  • Operational efficiencies reduce energy costs.
  • Able to run dry without damage (or additional maintenance) to the pump in case of accident or operator error.
  • Tolerates non-ideal operating conditions.
  • Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace.

D04 / G04 Series Resources

D04 - Datasheets
Datasheets
D04 Specifications
(Performance, Dimensions, Options, Ordering Information)
Application Worksheet
Installation Guidelines

G04 - Datasheets
Datasheets
G04 Specifications
(Performance, Dimensions, Options, Ordering Information)
Application Worksheet
Installation Guidelines

D04 Series (US)
D04 - Flow Capacities @2500 psi (172 bar)
Modelrpmgpml/min
D04-X17502.9511.16
D04-E17502.047.71
D04-S17501.636.19

D04 - Delivery
Modelgal/rev @500 psi (34 bar)@1500 psi (103 bar)@2500 psi (172 bar)
D04-X0.00190.00180.0017
D04-E0.00130.00120.0012
D04-S0.00110.00100.0009
Modelliters/rev@500 psi(34 bar)@1500 psi(103 bar)@2500 psi(172 bar)
D04-X0.00700.00670.0064
D04-E0.00500.00470.0044
D04-S0.00410.00390.0035

D04 - Other Specifications
Maximum Discharge Pressure
Metallic Heads:2500 psi (172 bar)
Maximum Inlet Pressure500 psi (34 bar)
Maximum Operating Temperature
Metallic Heads:250 ̊F (121 ̊C) - Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).
Non-metallic Heads:140 ̊F (60 ̊C)
Maximum Solids Size200 microns
Inlet Port1/2 inch NPT
Discharge Port1/2 inch NPT
Shaft Diameter7/8 inch (22.2 mm)
Shaft RotationReverse (bi-directional)
BearingsPrecision ball bearings
Oil Capacity1.1 US quarts (1.05 liters)
Weight37 lbs. (16.8 kg)

G04 Series (Metric)
G04 - Flow Capacities @ 172 bar (2500 psi) 4-pole Motor @ 50 Hz
ModelrpmgpmI/min
G04-X14502.409.1
G04-E14501.746.6
G04-S14501.355.1

G04 - Flow Capacities @ 172 bar (2500 psi) 6-pole Motor @ 50 Hz
ModelrpmgpmI/min
G04-X9601.586.0
G04-E9601.164.4
G04-S9600.873.3

G04 - Other Specifications
Maximum Discharge Pressure
Metallic Heads:172 bar (2500 psi)
Maximum Inlet Pressure34 bar (500 psi)
Maximum Operating Temperature
Metallic Heads:121 ̊C (250 ̊F) - Consult factory for correct component selection for temperatures from 71 ̊C (160 ̊F) to 121 ̊C (250 ̊F).
Non-metallic Heads:140 ̊F (60 ̊C)
Maximum Solids Size200 microns
Inlet Port1/2 inch BSPT
1/2 inch NPT
600lb ANSI RF flange
Discharge Port1/2 inch BSPT
1/2 inch NPT
2500lb ANSI RF flange
Shaft Diameter22.2 mm (7/8 inch)
Shaft RotationReverse (bi-directional)
BearingsPrecision ball bearings
Oil Capacity1.05 liters (1.1 US quarts)
Weight16.8 kg (37 lbs.)

D04 - 3D CAD Drawings
Files
D04 w/Metallic Pump Head(Solidworks Part)
D04 w/Metallic Pump Head(IGES File zipped)
D04 w/Metallic Pump Head(STEP File)

G04 - 3D CAD Drawings
Files
n/a

D04 / G04 - 2D CAD Drawings
Files
D04 w/Metallic Pump Head
G04 w/Metallic Pump Head

Valve Selection

Choose the valve for this Diaphragm Pump

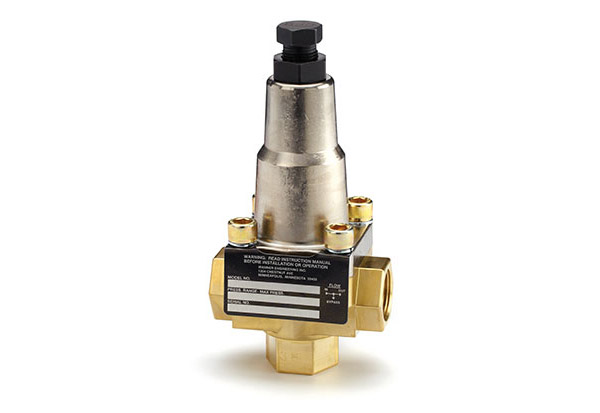

C62 Pressure Regulating Valve

A seal-less C62 Pressure Regulating Valve is recommended for Hydra- Cell D04 pumping systems, especially for high- pressure requirements or when handling dirty fluids. See page 82 for more information.

Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace. Operational efficiencies reduce energy costs.

Hydra-Cell Heavy Duty Pumps have proven their performance and reliability in the toughest industrial equipment and process applications.

When we say “Simply Built to Last”, we mean it!
