M03 Series (US) / G03 Series (Metric)

Diaphragm Pump Features

Versatile, Reliable Pumps for a Wide Range of Applications

  • Pumps the full spectrum of low-to-high viscosity fluids.
  • Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps.
  • Simple, compact design reduces initial investment and lowers maintenance costs.
  • Operational efficiencies reduce energy costs.
  • Able to run dry without damage (or additional maintenance) to the pump in case of accident or operator error.
  • Tolerates non-ideal operating conditions.
  • Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace.

M03 / G03 Series Resources

M03 - Datasheets
Datasheets
M03 Specifications
(Performance, Dimensions, Options, Ordering Information)
Application Worksheet
Installation Guidelines

G03 - Datasheets
Datasheets
G03 Specifications
(Performance, Dimensions, Options, Ordering Information)
Application Worksheet
Installation Guidelines

M03 Series (Metric)
M03 - Flow Capacities @1000 Psi (69 Bar)
Modelrpmgpml/min
M03-X17503.1011.73
M03-E17502.188.25
M03-S17501.696.40
M03-B17500.963.63
M03-G17500.622.35

M03 - Delivery @1200 psi (83 bar)
Modelgal/revliters/rev
M03-E0.00120.0046
M03-S0.00090.0036
M03-B0.00050.0020
M03-G0.00030.0013

M03 - Delivery @1000 psi (69 bar)
Modelgal/revliters/rev
M03-X0.00180.0067
M03-E0.00130.0047
M03-S0.00100.0037
M03-B0.00050.0021
M03-G0.00040.0013

M03 - Other Specifications
Maximum Discharge Pressure
Metallic Heads:M03-X to 1000 psi (69 bar)
M03-S, E, B to 1200 psi (83 bar)

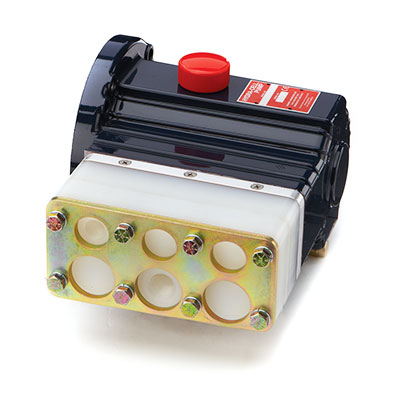

Non-metallic Heads:250 psi (17 bar) Polypropylene
350 psi (24 bar) PVDF
Maximum Inlet Pressure250 psi (17 bar)
Maximum Operating Temperature
Metallic Heads:250 ̊F (121 ̊C) - Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).
Non-metallic Heads:140 ̊F (60 ̊C)
Maximum Solids Size200 microns
Inlet Port
Primary:1/2 inch NPT
Secondary:3/8 inch NPT (plugged from factory)
Discharge Port3/8 inch NPT
Shaft DiameterM03: 5/8 inch (15.9 mm) hollow shaft
D03: 7/8 inch (22.2 mm)
Shaft RotationReverse (bi-directional)
BearingsPrecision ball bearings
Oil Capacity1.0 US quart (0.95 liters)
Weight
Metallic Heads:28 lbs. (12.7 kg)
Non-metallic Heads:19 lbs. (8.6 kg)

G03 Series (Metric)
G03 - Flow Capacities @ 69 bar (1000 psi) 4-pole Motor @ 50 Hz
Modelrpmgpml/min
G03-X14502.459.3
G03-E14501.806.8
G03-S14501.485.6
G03-B14500.923.5
G03-G14500.401.5

G03 - Flow Capacities @ 69 bar (1000 psi) 6-pole Motor @ 50 Hz
Modelrpmgpml/min
G03-X14502.459.3
G03-E14501.806.8
G03-S14501.485.6
G03-B14500.923.5
G03-G14500.401.5

G03 - Delivery @ 83 bar (1200 psi)
Modelgal/revliters/rev
G03-E0.00120.0046
G03-S0.00090.0036
G03-B0.00050.0020
G03-G0.00030.0013

G03 - Delivery @ 69 bar (1000 psi)
Modelgal/revliters/rev
G03-X0.00180.0067
G03-E0.00130.0047
G03-S0.00100.0037
G03-B0.00050.0021
G03-G0.00040.0013

G03 - Other Specifications
Maximum Discharge Pressure
Metallic Heads:G03-X to 69 bar (1000 psi)
G03-S, E, B to 83 bar (1200 psi)
Non-metallic Heads:17 bar (250 psi) Polypropylene
24 bar (350 psi) PVDF
Maximum Inlet Pressure17 bar (250 psi)
Maximum Operating Temperature
Metallic Heads:121 ̊C (250 ̊F) - Consult factory for correct component selection for temperatures from 71 ̊C (160 ̊F) to 121 ̊C (250 ̊F).
Non-metallic Heads:60 ̊C (140 ̊F)
Maximum Solids Size200 microns
Inlet Port1/2 inch BSPT
1/2 inch NPT
Discharge Port3/8 inch BSPT
3/8 inch NPT
Shaft DiameterG13: 24 mm hollow shaft
G03: 22.2 mm (7/8 inch)
Shaft RotationReverse (bi-directional)
BearingsPrecision ball bearings
Oil Capacity0.95 liters (1.0 US quart)
Weight
Metallic Heads:12.7 kg (28 lbs.)
Non-metallic Heads:8.6 kg (19 lbs.)

M03 - 3D CAD Drawings
Files

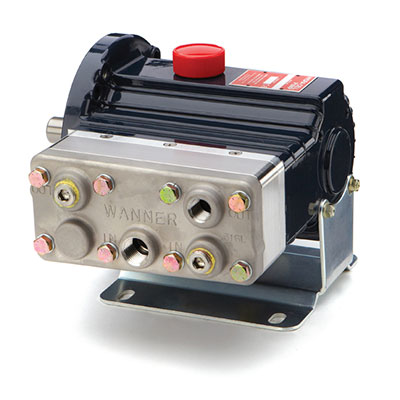

D03 w/Metallic Pump Head(Solidworks Part)
D03 w/Metallic Pump Head(IGES File zipped)
D03 w/Metallic Pump Head(STEP File)

G03 - 3D CAD Drawings
Files
n/a

Valve Selection

Choose the valve for this Diaphragm Pump

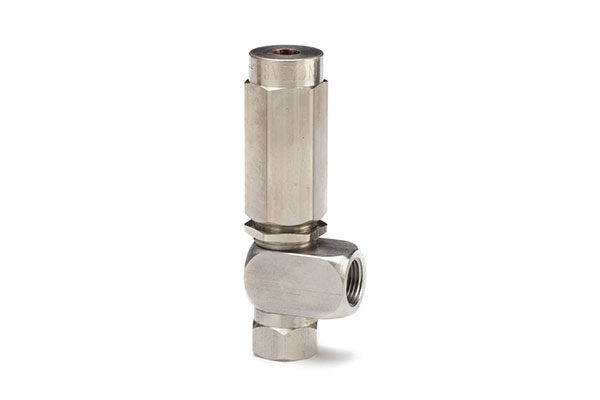

C46 Pressure Regulating Valve

A Hydra-Cell M03/D03 pumping system uses a C46 Pressure Regulating Valve.

Able to run dry without damage (or additional maintenance) to the pump in case of accident or operator error.

Hydra-Cell Heavy Duty Pumps have proven their performance and reliability in the toughest industrial equipment and process applications.

When we say “Simply Built to Last”, we mean it!
