P600 Pump Series

Electronic Precision Metering

Versatile, Reliable Pumps for a Wide Range of Applications

  • Designed to handle a wide range of fluids from clear water to thick slurries
  • Electronic flow control increases accuracy and reliability
  • Multiple diaphragm design provides linear, virtually pulse-less flow
  • Smaller footprint saves valuable space
  • One pump covers a wide range of flows and pressures - reducing inventory requirements with fast, simple field conversion
  • Duplexing option doubles capacity and equipment savings
  • Hydraulically-actuated, balanced diaphragms provide superior performance across entire pressure range
  • Rugged construction with a variety of affordable choices for liquid end, diaphragm and check valve materials

P600 Series Resources

P600 - Specifications
Diaphragms per Liquid End 3
Flow Control Electronic variable speed drive
Maximum Discharge Pressure

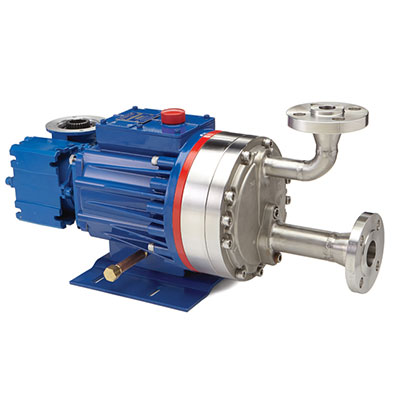

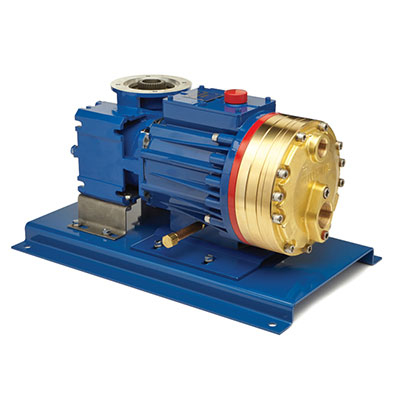

Metallic Heads: 1000 psi (69 bar)

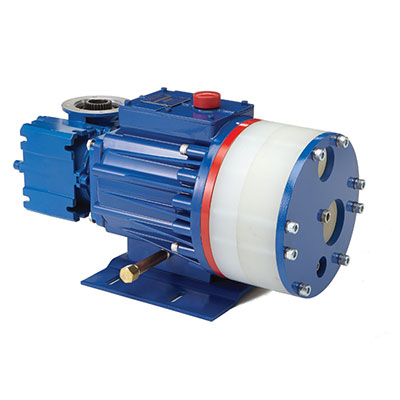

Non-metallic Heads:PVDF- 350 psi (24 bar)
Polypropylene- 250 psi (17 bar)
Maximum Inlet Pressure 250 psi (17 bar)
Maximum Operating Temperature
Metallic Heads:250 ̊F (121 ̊C)*
Non-metallic Heads: 140 ̊F (60 ̊C)
Inlet Port1-1/2 inch NPT or BSPT
Discharge Port 1 inch NPT or BSPT
Weight (less motor)**
Metallic Heads:146.0 lbs (66.2 kg)
Non-metallic Heads: 111.0 lbs (50.3 kg)
Dimensions (less motor)**
Metallic Heads:10.74” W x 20.64” D x 11.57” H
(272.7 mm W x 524.3 mm D x 293.9 mm H)
Non-metallic Heads:10.74” W x 21.56” D x 11.57 H”
(272.7 mm W x 547.6 mm D x 293.9 mm H)
* Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).* Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).
** For 56C motor frame only. Consult factory for other motor frame sizes..** For 56C motor frame only. Consult factory for other motor frame sizes.

P600 - Manuals
Manuals
Installation & Service Manual

CAD Drawings
Files
n/a

CAD Drawings
Files
n/a

Simple, compact design reduces initial investment and lowers maintenance costs.

Hydra-Cell Heavy Duty Pumps have proven their performance and reliability in the toughest industrial equipment and process applications.

When we say “Simply Built to Last”, we mean it!
