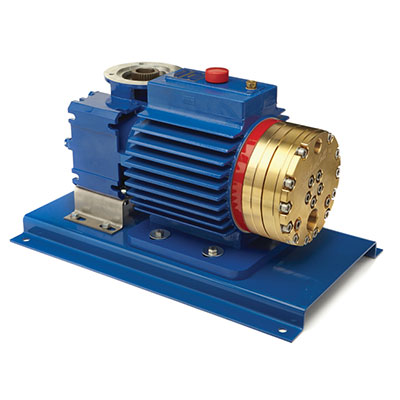

P500 Pump Series

Electronic Precision Metering

Versatile, Reliable Pumps for a Wide Range of Applications

  • Designed to handle a wide range of fluids from clear water to thick slurries
  • Electronic flow control increases accuracy and reliability
  • Multiple diaphragm design provides linear, virtually pulse-less flow
  • Smaller footprint saves valuable space
  • One pump covers a wide range of flows and pressures - reducing inventory requirements with fast, simple field conversion
  • Duplexing option doubles capacity and equipment savings
  • Hydraulically-actuated, balanced diaphragms provide superior performance across entire pressure range
  • Rugged construction with a variety of affordable choices for liquid end, diaphragm and check valve materials

P500 Series Resources

P500 - Specifications
Diaphragms per Liquid End 5
Flow Control Electronic variable speed drive
Maximum Discharge Pressure
Metallic Heads: 2500 psi (172 bar)
Maximum Inlet Pressure 500 psi (34 bar)
Maximum Operating Temperature
Metallic Heads:250 ̊F (121 ̊C)*
Inlet Port1-1/4 inch NPT or BSPT
Discharge Port 3/4 inch NPT or BSPT
Weight (less motor)**
Metallic Heads:192.1 lbs (88.5 kg)
Dimensions (less motor)**
Metallic Heads:14.5” W x 24.0” D x 13.9” H
(368.3 mm W x 609.6 mm D x 353.1 mm H)
* Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).* Consult factory for correct component selection for temperatures from 160 ̊F (71 ̊C) to 250 ̊F (121 ̊C).
** For 56C motor frame only. Consult factory for other motor frame sizes.** For 56C motor frame only. Consult factory for other motor frame sizes.

P500 - Manuals
Manuals
Installation & Service Manual

CAD Drawings
Files
n/a

CAD Drawings
Files
n/a

One pump covers a wide range of flows and pressures - reducing inventory requirements with fast, simple field conversion.

Hydra-Cell Heavy Duty Pumps have proven their performance and reliability in the toughest industrial equipment and process applications.

When we say “Simply Built to Last”, we mean it!
