Abrasive Handling Pumps

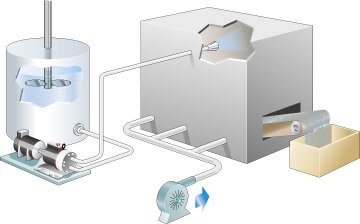

Chemical compounds of all types exist in powder form. A common manufacturing process for these products is to produce a liquid slurry based on the ingredients and then run it through a "dryer". As the liquid is evaporated, the fine chemical powder remains.

These slurries are extremely abrasive and often need to be pumped at high pressures. The seal-less Hydra-Cell® abrasive handling pump is perfectly suited for pumping abrasive fluids such as: alumina, ceramics, aluminum oxide, clay slip, baking soda, sodium silicate, calcium phosphate, tungsten carbide, and laundry detergent to name a few.

We're in your industry - Please contact us for help!



Hydra-Cell-Family-0676-550

Hydra-Cell® Diaphragm Pump Advantages

The seal-less nature of the Hydra-Cell diaphragm pumps enable charged and dirty liquids to be processed without need for fine filtration to protect the diaphragm pump.

The Hydra-Cell diaphragm pump needs little maintenance and can operate at continuous duty at high pressure.

Pulsation is low, so dampeners may not be required for most Hydra-Cell® diaphragm pumps.

Hydra-Cell® diaphragm pumps can handle solids up to 500 microns, or more. They can be pumped without fine filtration. System costs are reduced and maintenance is simplified.

Most diaphragm pumps in the Hydra-Cell® diaphragm pump range can operate at any pressure from <1 bar up to at least 70 bar. Some models up to 170 bar.

Seal-less design distinguishes the Hydra-Cell® diaphragm pumps from other diaphragm pumps and is the basis of its long service life - many of the liquids pumped are harmful to pump seals. The Hydra-Cell® diaphragm pumps are tolerant of small solids, resistant to chemical and corrosive attack.

Energy savings. Compact and highly efficient (80-85%), a Hydra-Cell® abrasive pumps can be fitted with a smaller motor than would be required by many much bigger hot water pumps for equivalent flows and pressures.

Hydra-Cell® Sealless Pump Selection Guide
